Usage

1. Conversion for Visualization

Generate visualization-ready MCAP files from raw EgoSuite MCAP data.

1.1 Single File Conversion

cd LW-Egosuite-DevKit
lw-egosuite convert --mcap $input_mcap_path --mcap_vis $mcap_for_vis_path

Parameter	Description
--mcap	Path to the source MCAP file (not a directory)
--mcap_vis	(Optional) Output path. Default: {input_dir}/{input_stem}_vis.mcap

Output path is printed at the start of conversion.

1.2 Batch Conversion

cd LW-Egosuite-DevKit

data_path="/path/to/your/data"

for input_mcap_path in "$data_path"/*.mcap; do
    [ -e "$input_mcap_path" ] || continue

    echo "Processing: $input_mcap_path ..."

    # output goes to same directory as input
    lw-egosuite convert --mcap "$input_mcap_path"
done

• $data_path: The directory containing the source MCAP files. Each file will be converted and saved with a _vis.mcap suffix in the same directory as the source file.

2. Data Visualization

Follow these steps to visualize the processed data in LW-VIZ:

1. Launch LW-VIZ: Open the LW-VIZ visualization platform.
2. Import Layout: Select default mode in the Layouts option. Load the recommended configuration file: assets/default_layout.json.
3. Load Data Streams: Simultaneously load the source file mcap_filename.mcap and the generated visualization file {mcap_filename}_vis.mcap (in the same directory as the source by default).

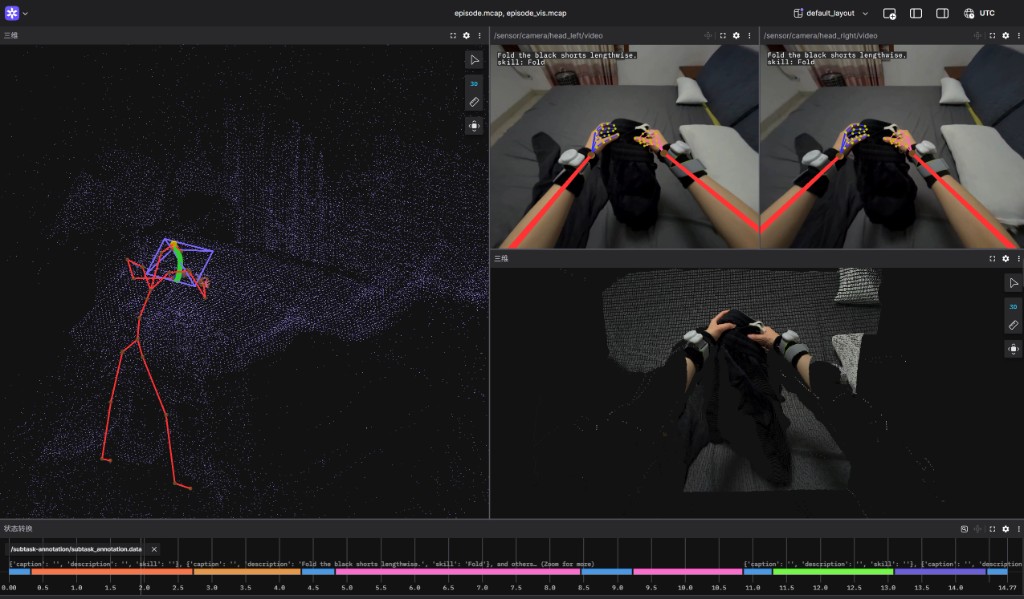

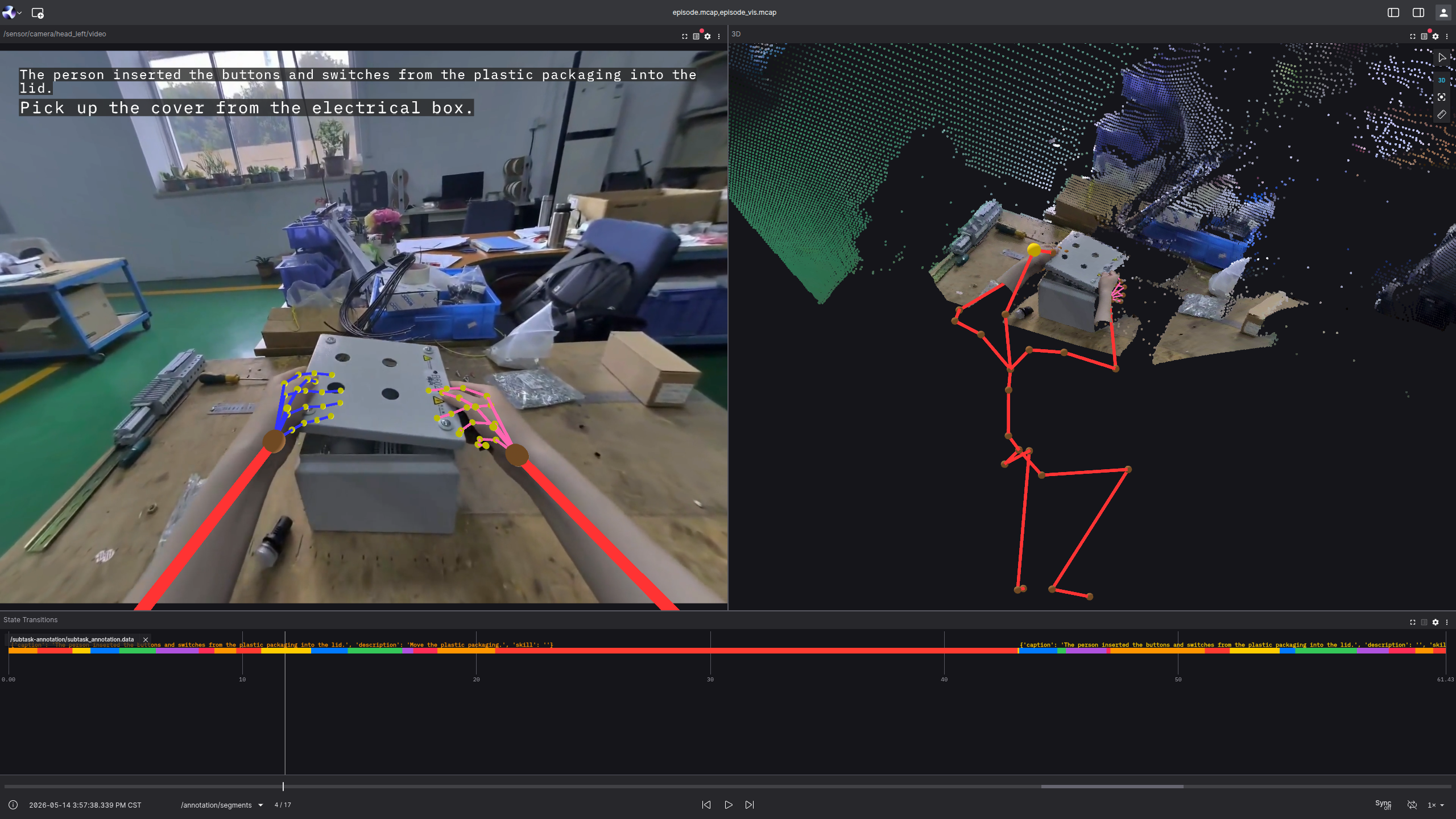

Once loaded, the visualization will appear in the dashboard as shown below:

3. Topics

3.1 Source Topics (Raw MCAP)

The following topics are expected in the raw input MCAP file. For detailed joint index conventions, refer to the Hand Pose and Body Pose documentation. For further details on message formats and schemas, see the MCAP Data documentation.

Click to expand topic list of raw MCAP

Topic	Proto Message	Description
/session/metadata	session.metadata.SessionMetadata	Session-level metadata: task info, operator, episode UUID
/pose/body	pose.BodyFrame	Body joint positions in world frame: 22-joint full-body or 14-joint upper-body skeleton
/pose/head_pose	pose.HeadPoseFrame	Head pose (position + orientation) in world frame
/pose/headcam_pose	pose.HeadcamPoseFrame	Head-mounted camera pose in world frame
/pose/left_hand	pose.LeftHandFrame	Left-hand 21-joint keypoints in world frame
/pose/right_hand	pose.RightHandFrame	Right-hand 21-joint keypoints in world frame
/pose/right_eye_cam	pose.RightEyeCamFrame	Right eye camera pose in world frame
/annotation/segments	annotation.segments.AnnotationSegment	Time-segmented subtask annotations (action level)
/sensor/camera/head_left/video	foxglove.CompressedVideo	Left head camera video stream (H.264)
/sensor/camera/head_right/video	foxglove.CompressedVideo	Right head camera video stream (H.264)
/sensor/camera/left_wrist/video	foxglove.CompressedVideo	Left wrist camera video stream (H.264)
/sensor/camera/right_wrist/video	foxglove.CompressedVideo	Right wrist camera video stream (H.264)
/sensor/camera/head_left/intrinsic	foxglove.CameraCalibration	Left head camera intrinsic calibration
/sensor/camera/head_right/intrinsic	foxglove.CameraCalibration	Right head camera intrinsic calibration
/sensor/camera/left_wrist/intrinsic	foxglove.CameraCalibration	Left wrist camera intrinsic calibration
/sensor/camera/right_wrist/intrinsic	foxglove.CameraCalibration	Right wrist camera intrinsic calibration
/sensor/camera/head_left/extrinsic	foxglove.FrameTransforms	Left head camera extrinsic (camera pose in world frame; parent=world, child=camera)
/sensor/camera/head_right/extrinsic	foxglove.FrameTransforms	Right head camera extrinsic
/sensor/camera/left_wrist/extrinsic	foxglove.FrameTransforms	Left wrist camera extrinsic
/sensor/camera/right_wrist/extrinsic	foxglove.FrameTransforms	Right wrist camera extrinsic
/sensor/camera/head_depth/image	foxglove.CompressedImage	Head depth camera image (optional)
/sensor/camera/head_depth/intrinsic	foxglove.CameraCalibration	Head depth camera intrinsic calibration (optional)
/sensor/camera/head_depth/extrinsic	foxglove.FrameTransforms	Head depth camera extrinsic (optional)
/pointcloud	foxglove.PointCloud	3D point cloud (x, y, z + RGBA) (optional)
/audio	foxglove.RawAudio	Raw audio stream (PCM s16) (optional)

3.2 Output Topics (Visualization MCAP)

The following topics are written into the _vis.mcap file by the conversion pipeline:

Topic	Message Type	Description
/tf-tree/tf_tree	foxglove.FrameTransforms	Coordinate frame transforms for the TF tree
/scene-update/upper_body_keypoints	foxglove.SceneUpdate	Upper-body skeleton: 14 joints covering spine, arms, and head-to-camera bones rendered as spheres + lines
/scene-update/lower_body_keypoints	foxglove.SceneUpdate	Lower-body skeleton: 8 joints covering hip and leg bones (only with 22-joint full-body data)
/scene-update/right_hand_keypoints	foxglove.SceneUpdate	Right-hand 3D skeleton (21 joints + finger bones)
/scene-update/left_hand_keypoints	foxglove.SceneUpdate	Left-hand 3D skeleton (21 joints + finger bones)
/scene-update/right_hand_keypoints_2d	foxglove.SceneUpdate	Right-hand skeleton projected for 2D overlay view
/scene-update/left_hand_keypoints_2d	foxglove.SceneUpdate	Left-hand skeleton projected for 2D overlay view
/scene-update/head_pose_trajectory	foxglove.SceneUpdate	Head movement trajectory
/subtask-annotation/subtask_annotation	lightwheel.SubtaskAnnotation	Structured action-level semantic annotation data
/subtask-annotation/annotation_image_annotations	foxglove.ImageAnnotations	Subtask annotation text overlaid on the camera image

4. Reading from MCAP

4.1 Export Video (CLI)

Export video requires ffmpeg on PATH. If not installed:

sudo apt install ffmpeg

Export a foxglove.CompressedVideo topic from an MCAP file to MP4. Uses stream copy (no re-encode). Output is a valid MP4 with moov atom at the start for compatibility.

lw-egosuite export-video --mcap path/to/file.mcap --output output.mp4

Parameter	Description
--mcap	Input MCAP file path
--output	Output MP4 file path
--topic	(Optional) CompressedVideo topic to export. Default: /sensor/camera/head_left/video

4.2 Iterate decoded messages (Python API)

Iterate decoded proto messages with the built-in reader:

from lw_egosuite_backend.mcap_reader import iter_messages

for m in iter_messages("out.mcap"):
    print(m.topic, m.log_time_ns, m.message)

# Filter by topics
for m in iter_messages("out.mcap", topics=["/pose/body"]):
    print(m.topic, m.message)

4.3 Decoding camera video frames (Python API)

Camera streams are stored as foxglove.CompressedVideo messages on topics such as:

• /sensor/camera/head_left/video
• /sensor/camera/head_right/video

You can decode these into numpy.ndarray or torch.Tensor using EgosuiteMcapReader.iter_video_frames:

from lw_egosuite_backend.mcap_reader import EgosuiteMcapReader, iter_video_frames

# Using the context-managed reader:
with EgosuiteMcapReader("episode.mcap") as r:
    for frame in r.iter_video_frames("/sensor/camera/head_left/video", output="numpy"):
        # frame is a numpy.ndarray with shape (H, W, 3), dtype=uint8
        print(frame.shape, frame.dtype)

# Using the convenience helper for a single topic:
for frame in iter_video_frames(
    "episode.mcap",
    topic="/sensor/camera/head_left/video",
    output="numpy",  # or "torch"
):
    print(frame.shape)

Notes:

• Video decoding requires ffmpeg and ffprobe on PATH.
• numpy is required; torch is only required when output="torch".
