Depth Camera

Some EgoSuite episodes include a head-mounted depth camera. The current converter writes depth data as compressed image messages, plus per-depth-frame intrinsics and extrinsics:

  • Compressed image stream
  • Depth camera intrinsics
  • Depth camera extrinsics

Topic & Message Type​

The following topics correspond to the head depth camera. All channels use protobuf encoding:

  • Image topic: /sensor/camera/head_depth/image
  • Image type: foxglove.CompressedImage
  • Intrinsic topic: /sensor/camera/head_depth/intrinsic
  • Intrinsic type: foxglove.CameraCalibration
  • Extrinsic topic: /sensor/camera/head_depth/extrinsic
  • Extrinsic type: foxglove.FrameTransforms

Each PNG becomes one foxglove.CompressedImage message with:

  • frame_id = "head_depth_camera"
  • format = "compressedDepth"
  • data containing the original PNG bytes

In the current MCAP conversion, depth frames are stored as foxglove.CompressedImage messages using format = "compressedDepth". The payload is the original depth PNG bytes from the episode. For the 3D depth-map rendering, compressed depth images are expected to be 16-bit grayscale PNGs, with depth values interpreted as millimeters by default.

Camera Intrinsics​

Camera publishes its calibration on a dedicated foxglove.CameraCalibration topic. For field definitions (including width, height, intrinsic matrix K, distortion model and parameters D, rectification matrix R, projection matrix P, and frame_id), see CameraCalibration documentation.

Camera Extrinsics​

Depth extrinsics are stored as foxglove.FrameTransforms. The converter reads R_w2c and t_w2c from each depth params frame, converts them to camera-in-world pose, and writes:

  • parent_frame_id = "world"
  • child_frame_id = "head_depth_camera"
  • translation: camera center in the world frame
  • rotation: camera orientation in the world frame

For details on converting camera-in-world (C2W) to world-to-camera (W2C) matrices, see the Head RGB Camera page.

Typical Usage​

A depth image stores per-pixel distance instead of RGB color. Each pixel value represents Z-axis depth, i.e., distance along the camera optical axis. Together with the camera intrinsics, a depth image can be lifted into 3D points in the camera frame; together with extrinsics, those points can be placed in the world frame.

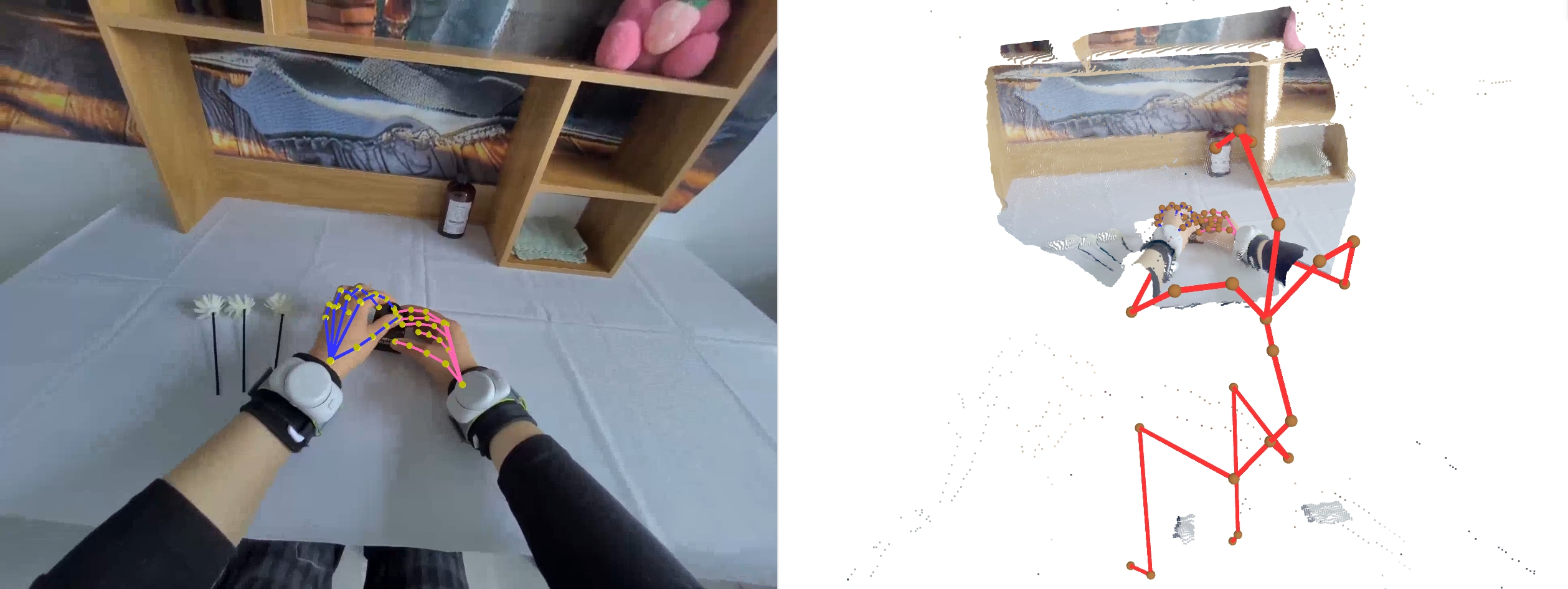

3D point cloud visualization from depth map render

Example point cloud rendered in 3D space.

In the 3D panel, enable /sensor/camera/head_depth/image and set the image Render mode to Depth map. The depth image will be rendered as a point cloud in 3D space. For correct rendering, load the matching topics together:

  • /sensor/camera/head_depth/image: depth image data.
  • /sensor/camera/head_depth/intrinsic: camera calibration used to lift pixels into 3D.
  • /sensor/camera/head_depth/extrinsic: transform from head_depth_camera into world.

Useful 3D panel settings include:

  • Distance type: use Z-axis (default) for depth along the camera optical axis.
  • Point size: increase this when the rendered point cloud appears sparse.
  • RGB topic: optionally choose a sibling RGB image topic to colorize the rendered depth points.

For more details, see the Foxglove 3D panel depth map documentation.
