Annotation

EgoSuite MCAP files can include annotation topics that store labeled segments (e.g. skill steps, task phases) with captions, labels, description, and skill names. Each segment has frame and/or time bounds. One message per segment; an episode may contain many such messages.

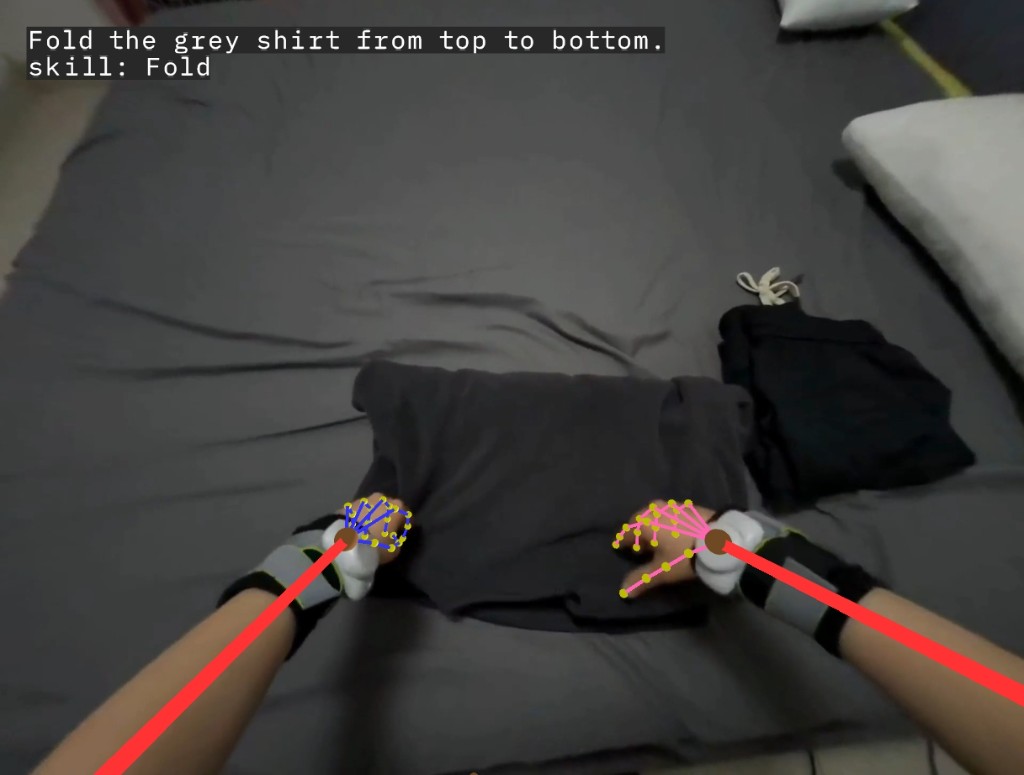

Example: skill segment caption and hand tracking overlay (fold grey shirt)

Example: segment overlay with description and skill (e.g. "Fold the grey shirt from top to bottom", skill "Fold") and hand pose.

Topic & Message Type​

  • Topic: /annotation/segments
  • Message type: annotation.segments.AnnotationSegment
  • Encoding: protobuf

Defined in annotation/segments.proto; all messages include common.header.Header.

Message definition

syntax = "proto3";

package annotation.segments;

import "common/header.proto";

message SkillSegment {
  // annotations with description, skill, start_frame, end_frame
  string description = 1;
  string skill = 2;
  uint32 start_frame = 3;
  uint32 end_frame = 4;
  // tier1/tier2: label, start_time/end_time in seconds, tier1.caption on first segment
  string label = 5;
  double start_time = 6;
  double end_time = 7;
  string caption = 8;
}

// Main message for topic /annotation/segments (one message per segment)
message AnnotationSegment {
  common.header.Header header = 1;
  SkillSegment segment = 2;
}

The proto supports both frame-based (start_frame/end_frame) and time-based (start_time/end_time) bounds; which fields are populated depends on the pipeline. Use caption for tier1/tier2-style text when present.
