Head Camera

The EgoSuite headset provides two head‑mounted RGB cameras. In the MCAP files, these cameras appear as separate topics for:

• Compressed video streams
• Per‑camera intrinsics (calibration)
• Per‑camera extrinsics (pose per frame transforms)

Coordinate Frames

Head cameras use consistent coordinate conventions across the dataset:

• World Frame:

  • All EgoSuite pose data (body and hands) is expressed in a world frame.
  • The camera extrinsics relate this world frame to each camera frame.

• Camera Frame (OpenCV convention):

  • Camera projections use the standard OpenCV camera coordinate system:
    • $z$ axis points forward from the camera.
    • $x$ axis points to the right in the image.
    • $y$ axis points down in the image.
  • This convention is used for the intrinsic matrix $K$, the distortion model $D$, rectification $R$, and the projection matrix $P$, as well as for the extrinsic rotation $R$ and translation $t$.

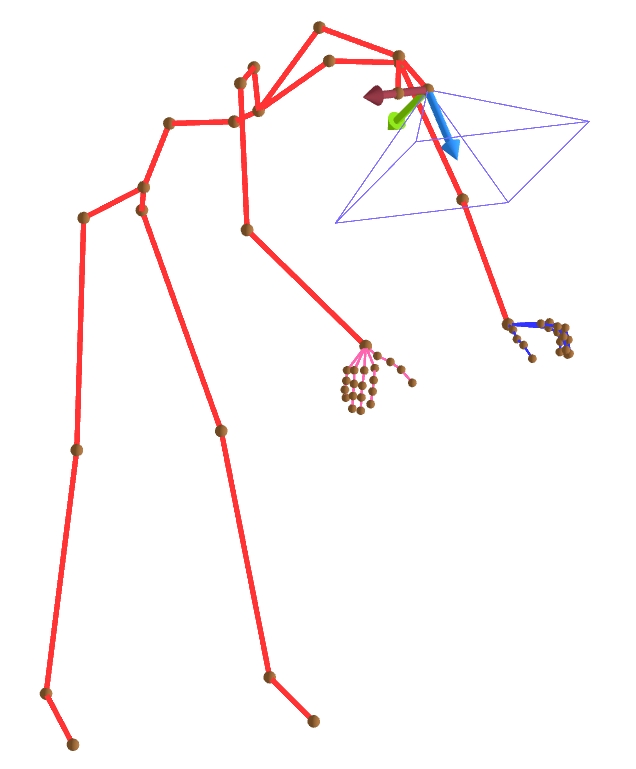

Camera coordinate frame (OpenCV convention): z-axis forward (blue), x-axis right (red), y-axis down (green).

Topic & Message Type

The following topics correspond to the head cameras. All channels use protobuf encoding:

• Left RGB Camera:

  • Video topic: /sensor/camera/head_left/video
  • Message type: foxglove.CompressedVideo
  • Intrinsic topic: /sensor/camera/head_left/intrinsic
  • Intrinsic type: foxglove.CameraCalibration
  • Extrinsic topic: /sensor/camera/head_left/extrinsic
  • Extrinsic type: foxglove.FrameTransforms

• Right RGB Camera:

  • Video topic: /sensor/camera/head_right/video
  • Message type: foxglove.CompressedVideo
  • Intrinsic topic: /sensor/camera/head_right/intrinsic
  • Intrinsic type: foxglove.CameraCalibration
  • Extrinsic topic: /sensor/camera/head_right/extrinsic
  • Extrinsic type: foxglove.FrameTransforms

Head camera video topics carry compressed video frames as foxglove.CompressedVideo messages. You can inspect, play back using Foxglove Studio or export these streams with LW-Egosuite-Devkit.

Camera Intrinsics

Camera publishes its calibration on a dedicated foxglove.CameraCalibration topic. For field definitions (including width, height, intrinsic matrix K, distortion model and parameters D, rectification matrix R, projection matrix P, and frame_id), see CameraCalibration documentation.

Camera Extrinsics

Camera extrinsic info is expressed as foxglove.FrameTransforms message. For field definitions (e.g. parent_frame_id, child_frame_id, translation, rotation), see FrameTransform documentation.

In EgoSuite MCAP files, camera extrinsic message represents the position and orientation of the cameras in world frame. The message uses parent_frame_id = world and child_frame_id = camera, with translation giving the camera center position and rotation (as a quaternion) giving the camera's orientation.

Computing the W2C (world-to-camera) extrinsic matrix

The EgoSuite MCAP extrinsic camera message uses the C2W (camera-to-world) convention. The following code converts it to a W2C (world-to-camera) extrinsic matrix, which transforms a point from world coordinates to camera coordinates.

import numpy as np
from scipy.spatial.transform import Rotation as R

R_c2w = R.from_quat([quat_x, quat_y, quat_z, quat_w]).as_matrix()
t_c2w = np.array([pos_x, pos_y, pos_z])

R_w2c = R_c2w.T
t_w2c = -R_w2c @ t_c2w

Typical Usage

Common use cases for head camera data include:

• Visualizing egocentric RGB streams aligned with human pose.
• Projecting 3D body or hand keypoints into image space using CameraCalibration plus FrameTransforms.
• Synchronizing multi‑camera data (head and wrist cameras) using the shared MCAP timeline and topic timestamps.

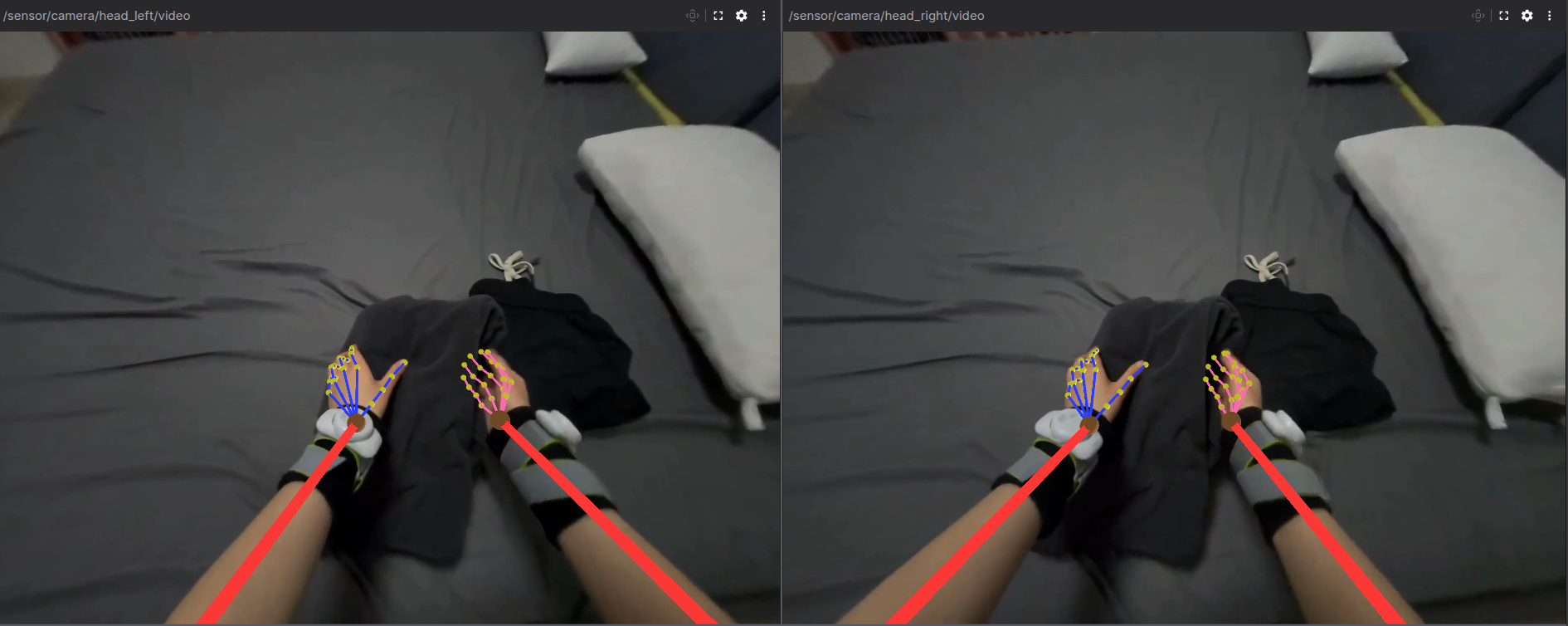

Example head camera image.
Left – view from the left head camera; right – view from the right head camera.
Body pose and hand pose are projected into each image.
